Flame Retardant Fast-Curing APG Outdoor Epoxy Resin for Flexible Casting in High-Voltage Insulators

Flame Retardant Fast-Curing APG Outdoor Epoxy Resin for Flexible Casting in High-Voltage Insulators

Outdoor epoxy resin for high-voltage

Epoxy resin for insulators

High-voltage bushing epoxy resin

محل منبع:

چین

نام تجاری:

wenyou

گواهی:

ISO9001, ISO14001, SGS, and UL

شماره مدل:

8517

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
طبقه بندی:
چسب های دو جزء
استفاده:
عایق ها، ترانسفورماتورها و سایر محصولات عایق
برنامه:
عایق های الکتریکی در فضای باز برای کاربردهای فشار متوسط ​​و فشار قوی
ظاهر رزین اپوکسی:
مایع چسبناک شفاف زرد روشن
ویسکوزیته در 25 درجه سانتی گراد:
1000 - 2500MPa.S
چگالی در 25 درجه سانتیگراد:
1.16 - 1.20 گرم در سانتی متر مکعب
فشار بخار در 25 درجه سانتیگراد:
<0.01pa
نقطه فلاش:
حدود 135 درجه سانتیگراد
شرح:
رزین اپوکسی ریخته گری انعطاف پذیر برای کپسول کردن کویل ترانسفورم - سازگار با شرایط مختلف
مقدار اپوکسی:
4.5 - 5.0 Eq/kg
شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش
20 کیلوگرم / سطل به عنوان نمونه
قیمت
قابل مذاکره
جزئیات بسته بندی

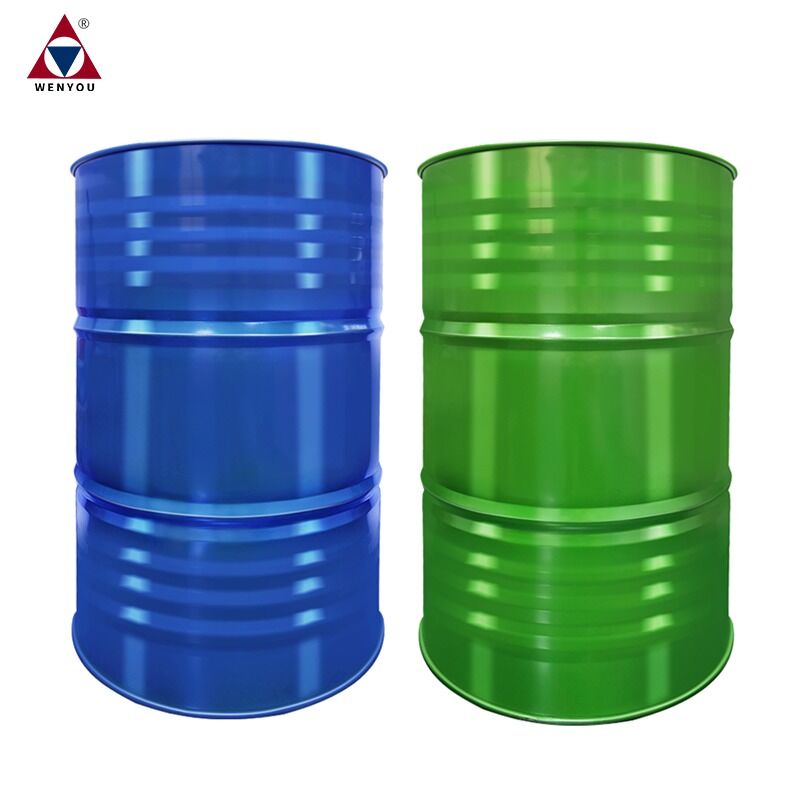

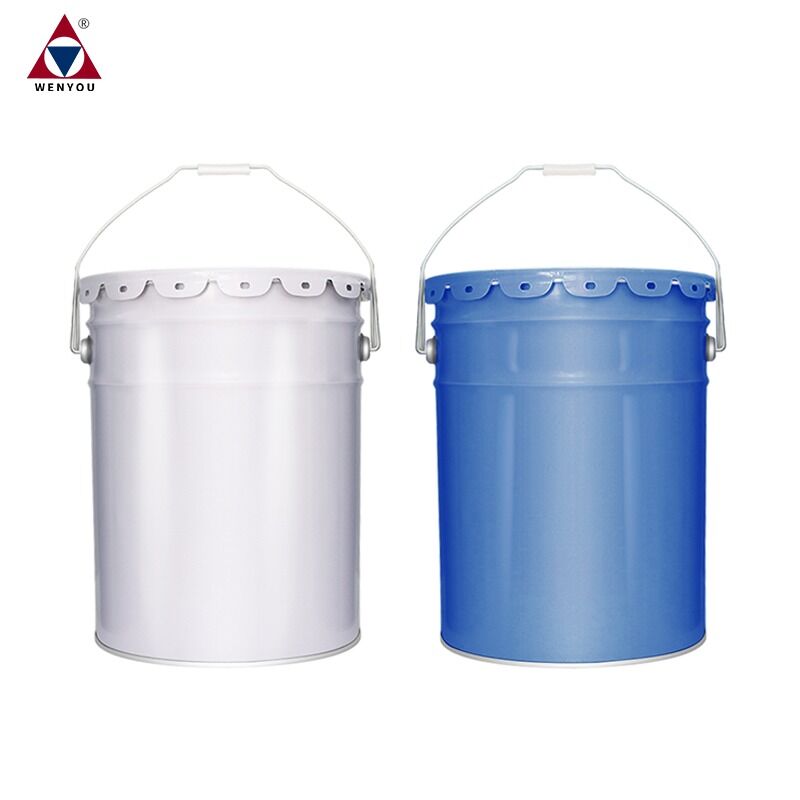

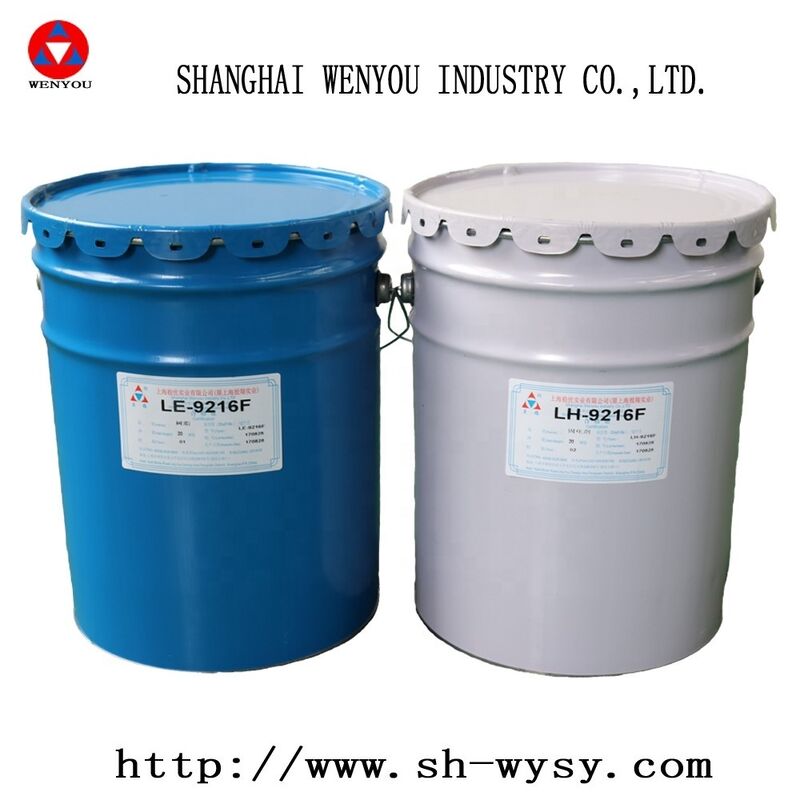

20 کیلوگرم / سطل، 220 کیلوگرم / بشکه، 1200 کیلوگرم / مخزن
زمان تحویل
7-10 روز کاری
شرایط پرداخت
به طور معمول T/T ، L/C
قابلیت ارائه
مقدار زیادی مواد خام در انبار
توضیحات محصول
Fast-Curing APG Epoxy Resin | Flame Retardant for Electrical Parts
Flexible Casting Epoxy Resin for Transformer Coil Encapsulation
Our flexible casting epoxy resin is specifically engineered for transformer coil encapsulation, designed to withstand various mechanical and thermal stresses during operation while maintaining excellent electrical insulation properties.
Key Benefits
  • Adapts to thermal expansion and contraction without cracking or delamination
  • Absorbs mechanical vibrations to protect transformer coils
  • Maintains excellent electrical insulation properties
  • Provides optimal balance between flexibility and structural strength
  • Ensures long-term integrity of transformer encapsulation
Product Introduction
LE-8517 is a modified saturated cyclic aliphatic epoxy resin system, combined with LH-8517, a modified weather-resistant anhydride hardener. This fast-curing epoxy is ideal for electronic insulators and suitable for vacuum casting.
Applications
Designed for outdoor use in medium and high voltage electrical components including:
  • Electrical insulators
  • Transformers
  • Various insulation components
Processing Methods
Available processing options include:
  • Conventional gravity casting method under vacuum
  • Automatic Pressure Gelation (APG) process
Production methods can be customized to accommodate existing manufacturing techniques.
Material Properties
This two-component system features:
  • Saturated cyclic epoxy resin without pre-mixed fillers
  • Remains liquid at room temperature
  • Excellent UV resistance
  • Outstanding thermal shock resistance
  • Superior environmental stability
  • Exceptional mechanical and dielectric properties
Formulation
Component Material Quantity
Epoxy resin LE-8517 100 pbw
Hardener LH-8517 100 pbw
Filler Silica powder 300-360 pbw
Color paste LC series 3 pbw
Product Images
Flame Retardant Fast-Curing APG Outdoor Epoxy Resin for Flexible Casting in High-Voltage Insulators 0
Flame Retardant Fast-Curing APG Outdoor Epoxy Resin for Flexible Casting in High-Voltage Insulators 1
Flame Retardant Fast-Curing APG Outdoor Epoxy Resin for Flexible Casting in High-Voltage Insulators 2
Flame Retardant Fast-Curing APG Outdoor Epoxy Resin for Flexible Casting in High-Voltage Insulators 3
